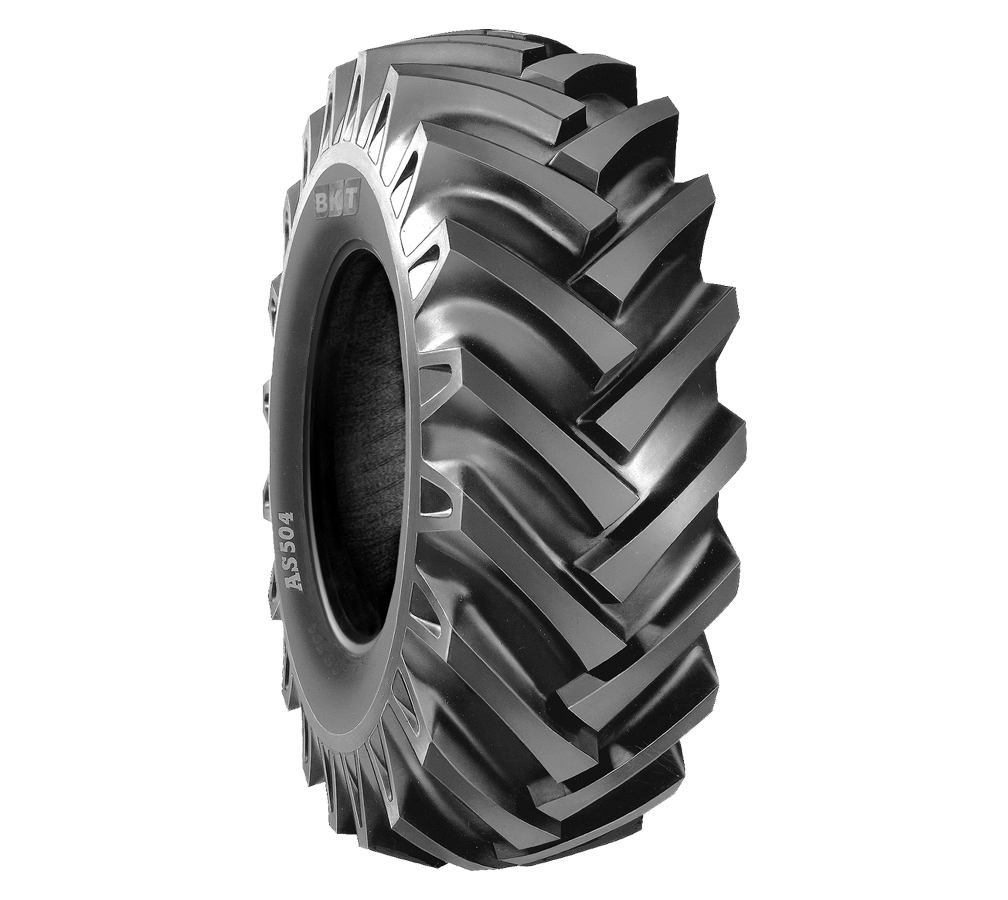

420/55-17 16 PR BKT AS 504 145A8 (FR) 133A8 (DW) TL
Description
AS 504 is range of versatile bias-ply agro-industrial tyres used predominantly in soil tillage and transport operations. The tread pattern which offers excellent traction and self-cleaning properties also lends itself to use in other agro-industrial applications such as telehandlers working in farming environments with hay-harvesting and loading requirements. An HD (Heavy Duty) and "Special" (reinforced casing) version are available to meet specific end-user requirements when required.
Features
- A range of versatile agro-industrial tyres for implement and soil tillage applications.
- Traction pattern for good grip in muddy conditions and good self-cleaning properties.
- Suitable for use in certain telehandler operations in farming environments.
- HD and Special versions available across certain sizes.
Specification
Application
PLANT
Size
420/55-17
Brand
BKT
Pattern
AS 504
Load/Speed Index
145A8 (FR) 133A8 (DW)
Ply Rating
16
TT/TL
TL
Construction
BIAS
Nominal Section Width
420
Profile
55
Rim
17
Recommended Rim
13.00
Section Width
430 mm
Overall Diameter
910 mm
Static Load Radius
407 mm
Rolling Circumference
2712 mm
Tread Depth
20.00 mm
Max Load (KG)/Speed (KM/H) 1
2900/40 (FR) 2060/40 (DW)
Inflation Pressure Bar
3.50
ECE 106
Yes
Warranty
8 YEARS
Tread Directional/Non-Directional
DIRECTIONAL
