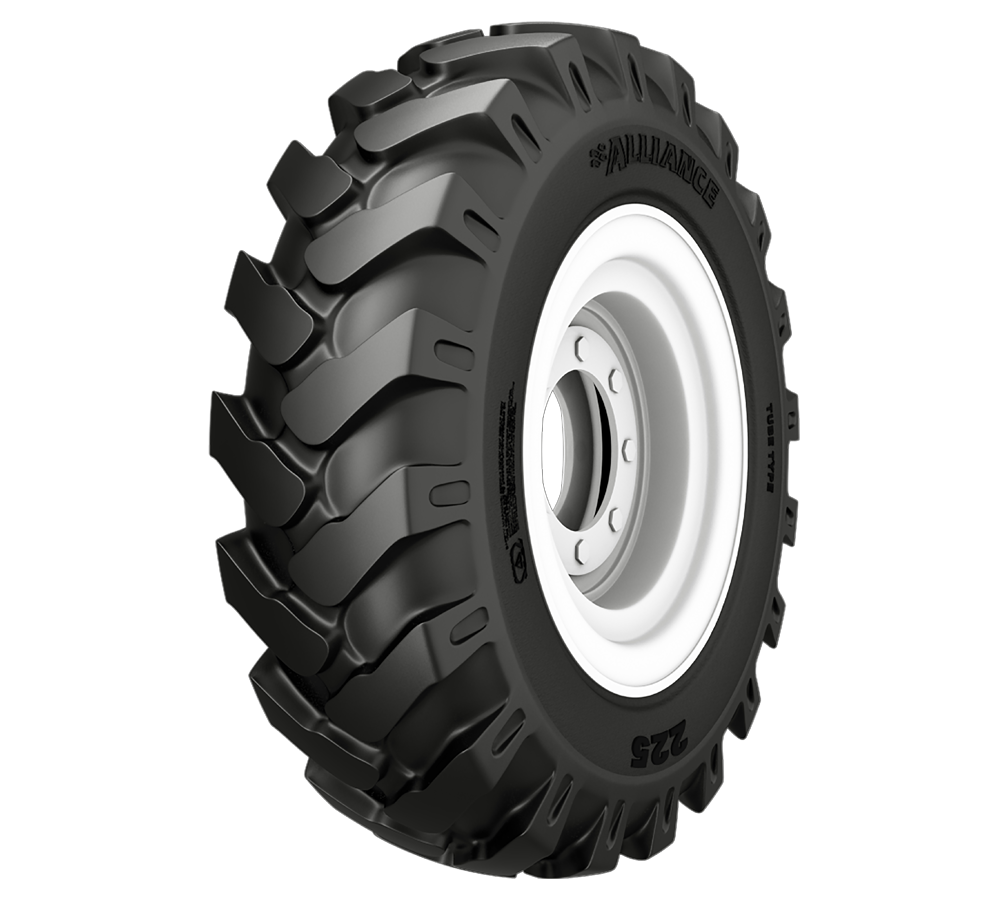

15-22.5 ML 22 PR ALLIANCE 225 164B E-2 TL
Description
The Alliance 225 pattern has been designed for use on compact wheel loaders and excavators working in off-road and road-side applications. The tread pattern provides excellent traction capabilities in all service conditions and also good self-cleaning properties. This is matched with good handling in road usage. A heat-resistant compound and cut-and-chip resistant compound are used in the manufacturing process lending increased durability to the tyre and increasing its life cycle.
Features
- Bias ply trye for excavator applications.
- Excellent traction and self-cleaning properties.
- Heat-resistant and cut-and-chip resistant compounds for increased durability.
Specification
Application
PLANT
Size
15-22.5 ML
Size Suffix
MINING LUG
Brand
ALLIANCE
Pattern
225
Load/Speed Index
164B
Ply Rating
22
TT/TL
TL
Construction
BIAS
Nominal Section Width
15
Rim
22.5
TRA
E-2
Recommended Rim
11.75
Permitted Rim
12.25
Section Width
388 mm
Overall Diameter
1095 mm
Static Load Radius
508 mm
Rolling Circumference
3290 mm
Max Load (KG)/Speed (KM/H) 1
5000/50
Inflation Pressure Bar
9.60
Specification 1
HEAT RESISTANT COMPOUND
Specification 2
CUT AND CHIP RESISTANT COMPOUND
